Permissible Radial Low Speed High Torque Hydraulic Motor Strong Wear Resistant
Features:
POCLAIN MS50 Hydraulic Motor:
1). Radial piston type;
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
Hydraulic shaft motors: multi-cam radial pistons. Standard manufacture splined shaft (DIN), one or two speeds, with or without brake (integral multi-disc wet brake).
Also available as a hydraulic wheel motor with flanged output shaft or drum brake on some models.
“S” Series are available with larger displacements in smaller bodies to give a compact design. This results in lower pressures and speeds.
MS50 Displacement Diagram
| Type | MS50-8 | MS50-9 | MS50-0 | MS50-1 | MS50-2 |
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 3500 | 1750 | 4008 | 2004 | 4996 | 1747 | | | 6012 | 3006 |
| Max power(kw) | 123 | 82 | 123 | 82 | 123 | 65 | | | 123 | 82 |
Pressure discrepancy 10MPa Torque
(N. m) | 5231 | 2562 | 5990 | 2935 | 7467 | 2558 | | | 8985 | 4402 |
| Rated torque(N. m) | 13077 | 14975 | 18667 | | 22463 |
| Rated pressure(MPa) | 25 | 25 | 25 | | 25 |
| Max pressure(MPa) | 40 | 40 | 40 | | 35 |
| Rated speed(r/min) | 40 | 40 | 40 | | 35 |
| Speed range(r/min) | 0-100 | 0-100 | 0-100 | | 0-90
|
Applications:
Construction Machinery: Road Roller, Forging Manipulators, Bucket Wheel Machine.
Marine Machinery: Marine Deck Crane, Gantry Crane Equipment.
Mining Machinery: Heavy Duty Handling Car, Coal Mine Drill.

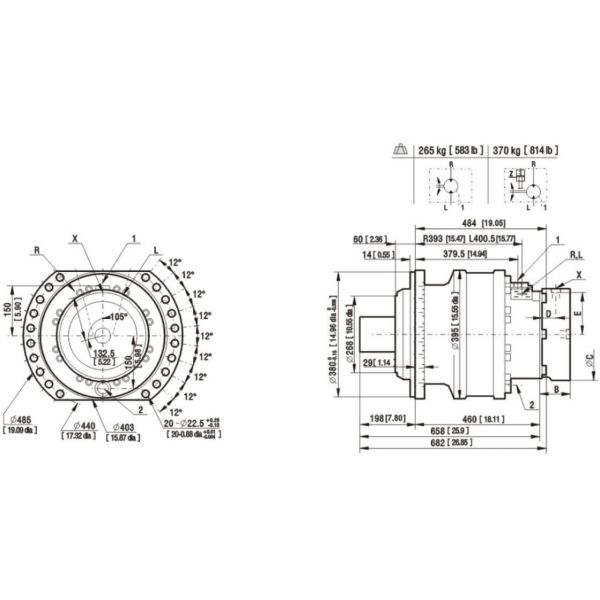

MS35 Connection Dimension
High precision testing facilities and experienced inspectors.
