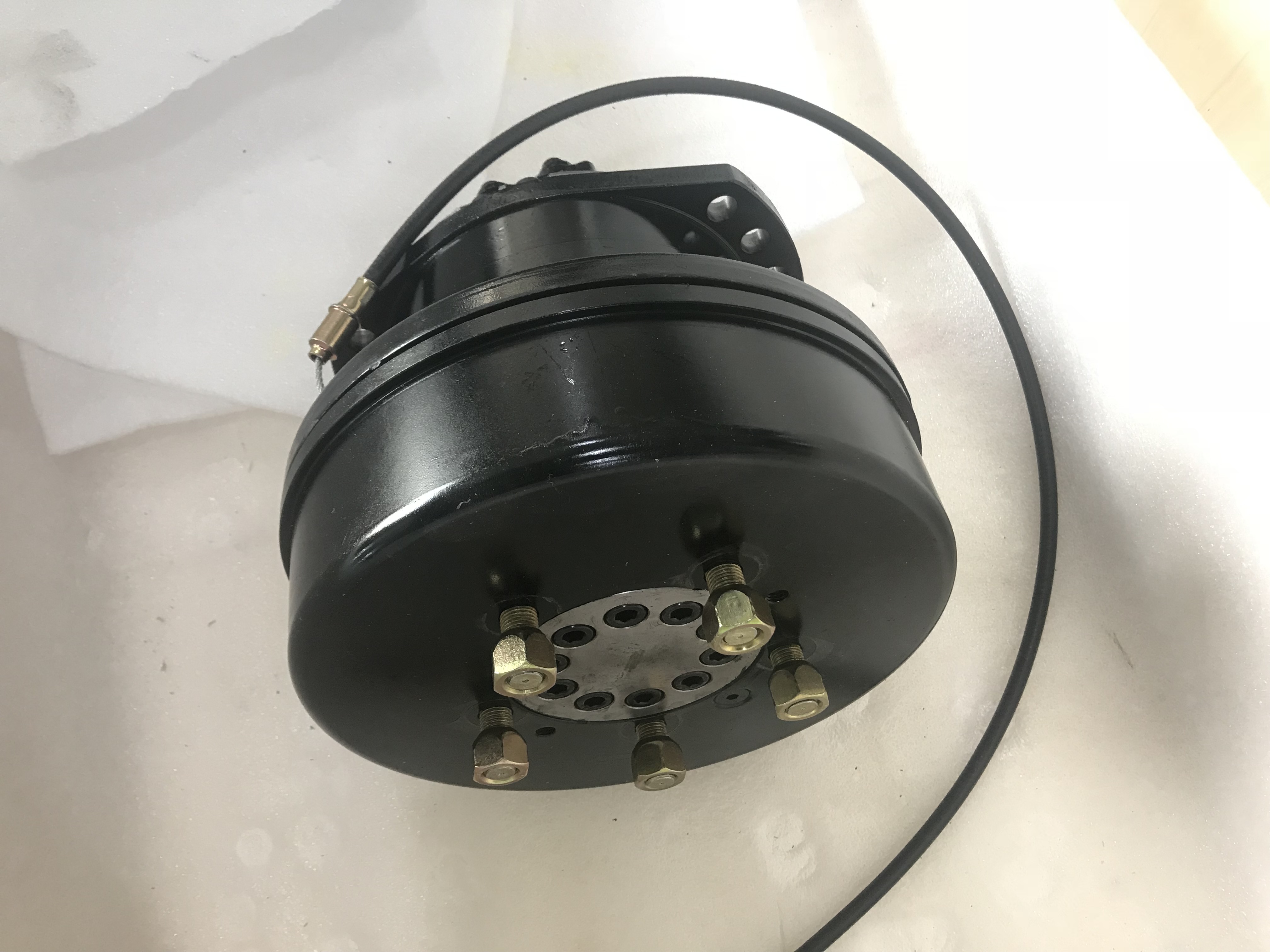

Poclain MS02 Radial Piston Slow Speed High Torque Motor For Engineering/Farming Machinery 200 r

Name: Poclain MS02 Radial Piston Slow Speed High Torque Motor For EngineeringFarming Machinery 200 r
Brand: Helm Tower
Price: 1 USD

China Poclain MS02 Radial Piston Slow Speed High Torque Motor For Engineering/Farming Machinery 200 r wholesale

Brand Name : Helm Tower

Model Number : MSE02

Certification : ISO 9001

Place of Origin : Ningbo

MOQ : Negotiation

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 units per month

Delivery Time : 7-15 working days

Packaging Details : Standard Export Wooden Case

Type : piston motor

Color : customized

Speed : 0-200 r/min

Torque : 1100-1300 N.m

Rated pressure : 25 MPa

Max. pressure : 31.5 MPa

Material : Printed

Warranty : 1 year

Contact Now

Poclain MS02 Radial Piston Slow Speed High Torque Motor For Engineering/Farming Machinery 200 r

Features:

Poclain MSE02 Hydraulic Motor
1). Radial piston type;
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.

Code	HMS02				HMSE02
Displacement Group	8	0	1	2	0	1	2
Displacement(ml/r)	172	213	235	255	332	364	398
Theoretical torque at 10Mpa(N.m)	273	339	374	405	528	579	633
Rated speed(r/min)	200	200	160	160	160	125	100
Rated pressure(Mpa)	25	25	25	25	25	25	25
Rated torque(N.M)	550	700	750	800	1100	1150	1300
Max.pressure(Mpa)	31.5	31.5	31.5	31.5	31.5	31.5	31.5
Max.torque(N.m)	650	850	950	1000	1300	1450	1600
Speed range(r/min)	0-390	0-310	0-285	0-260	0-200	0-182	0-165
Max.power(kW)	Standard displacement is 18kW(HMSE02 22kW), variable displacement priority rotation 12kW(HMSE02 16.5kW), no priority is 9kW(HMSE02 11kW)

Poclain MS02 Radial Piston Slow Speed High Torque Motor For Engineering/Farming Machinery 200 r

Applications:

Mining Machinery:Coal Mine Drill, Heavy Duty Handling Car.
Engineering Machinery:Scavenging Machine, Aircraft Tractor, Beam Carrier/Hoisting Machine.
Farming Machinery: Mini Farming Vehicle, Ditcher.

Poclain MS02 Radial Piston Slow Speed High Torque Motor For Engineering/Farming Machinery 200 r

Poclain MS02 Radial Piston Slow Speed High Torque Motor For Engineering/Farming Machinery 200 r

MS02 Connection Dimension

High precision testing facilities and experienced inspectors.

FAQ:

Q: Are you a manufacturer or trading company?

A: Manufacturer

Q: Your payment?

A: 100% TT in advance

Q: Your minmun order quantity(MOQ)?

A: 1 set

Q: Warranty time?

A: 1 year
